oreokid220

Hey all,

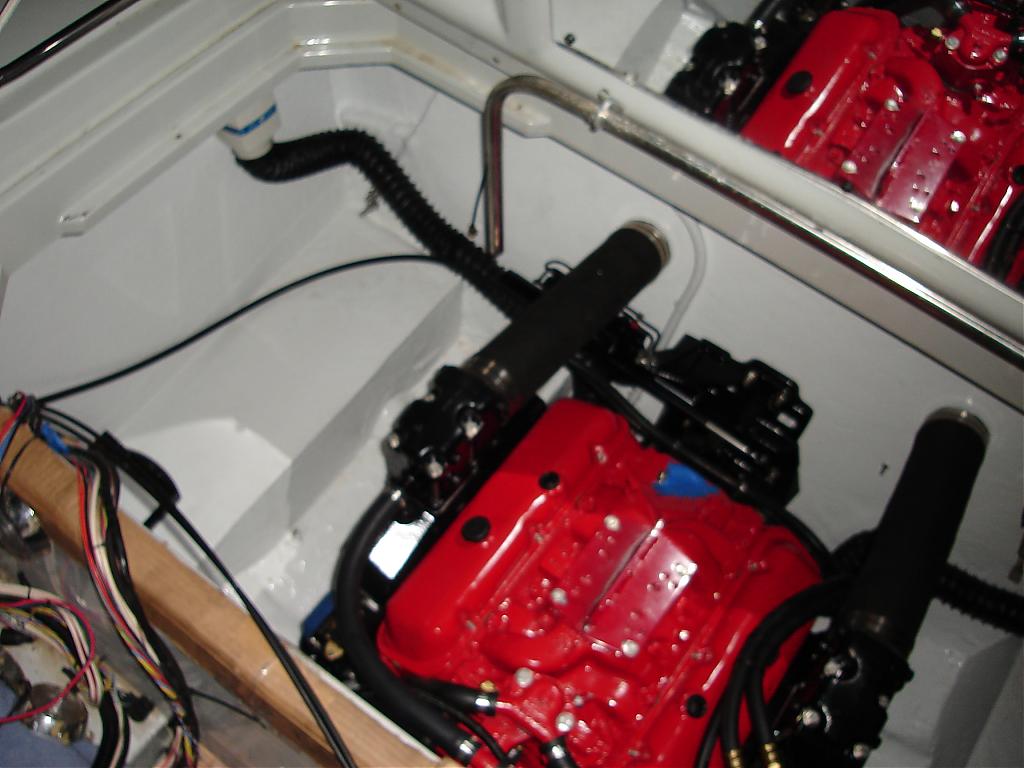

I am the proud owner of a 1988 242 LS which I have spent the summer painting the bilge Awlgrip White and the 454 bored .60 over and painted red with black accents.
I am now to the wiring part and here is my problem. I have dual batteries and a switch. I am assuming the two leads from the switch 1 and 2 positions go to each battery and the third lead goes to the starter? I am also confused because on the starboard bulkhead there is a piece of black lexan which has two studs above the barttery and I have no clue with this is for either. Oh the the grounds from the battaries go to the block?

Thanks for the help formula owners.

Jed
[email protected]

88242LS

Nice boat!, I wish i had my 242 stilll to help you, I don'tn remeber w/o looking, does yours have the bolsters or swivel buckets, post more pics mine was the same scheme except maroone, D**it I should have kept it

MOBILEMERCMAN

Jed, You are right 1 and 2 go to each battery the third often marked common goes to starter. The two studs were probably for a place to charge or jump the batteries if they died and kept you from opening the hatch. In that case they would be a positive and negative direct to a battery. Make sure you protect them with some form of cover if you reconnect them.
Jim

oreokid220

Thanks guys. Yeah I am good with wiring all the other things just concerned with getting these batteries correct. The studs I remember one being for positive and the other negative but just not sure what they were there for.

Here are some more before and after pictures of the progress.

Before and After :

oreokid220

More

formula1

Sweet! Just in time for winter...

oreokid220

Hahaha I wish it would even be done for winter, but if I dont figure out this battery thing I am in trouble.

formula1

I used to have a Palm Beach 242SS with a 454, but I really don't remember the battery switch connections. But, don't hesitate to call Formula tomorrow and ask for technical support. I'm sure they can fax you a wiring diagram.

Not to tease you , but I think I still have the entire wiring diagram for the 242SS. I wish I knew where I put it...
If I remember, I'll post here. But in the meantime, call Formula. They will help.

88242LS

hey how bought that just what I am looking for, go figure, nice job!

kjo43

I think they are there just to keep the wiring out of the bottom of the bilge and keep things looking nice. I don't have a pic but I'm almost certian the cables go from my battery to those posts on each side. (I have a set of posts for each battery)

I can take a pic if we get the boat out this weekend. But I'm guessing someone will know or have a pic for you by the end of the day...
